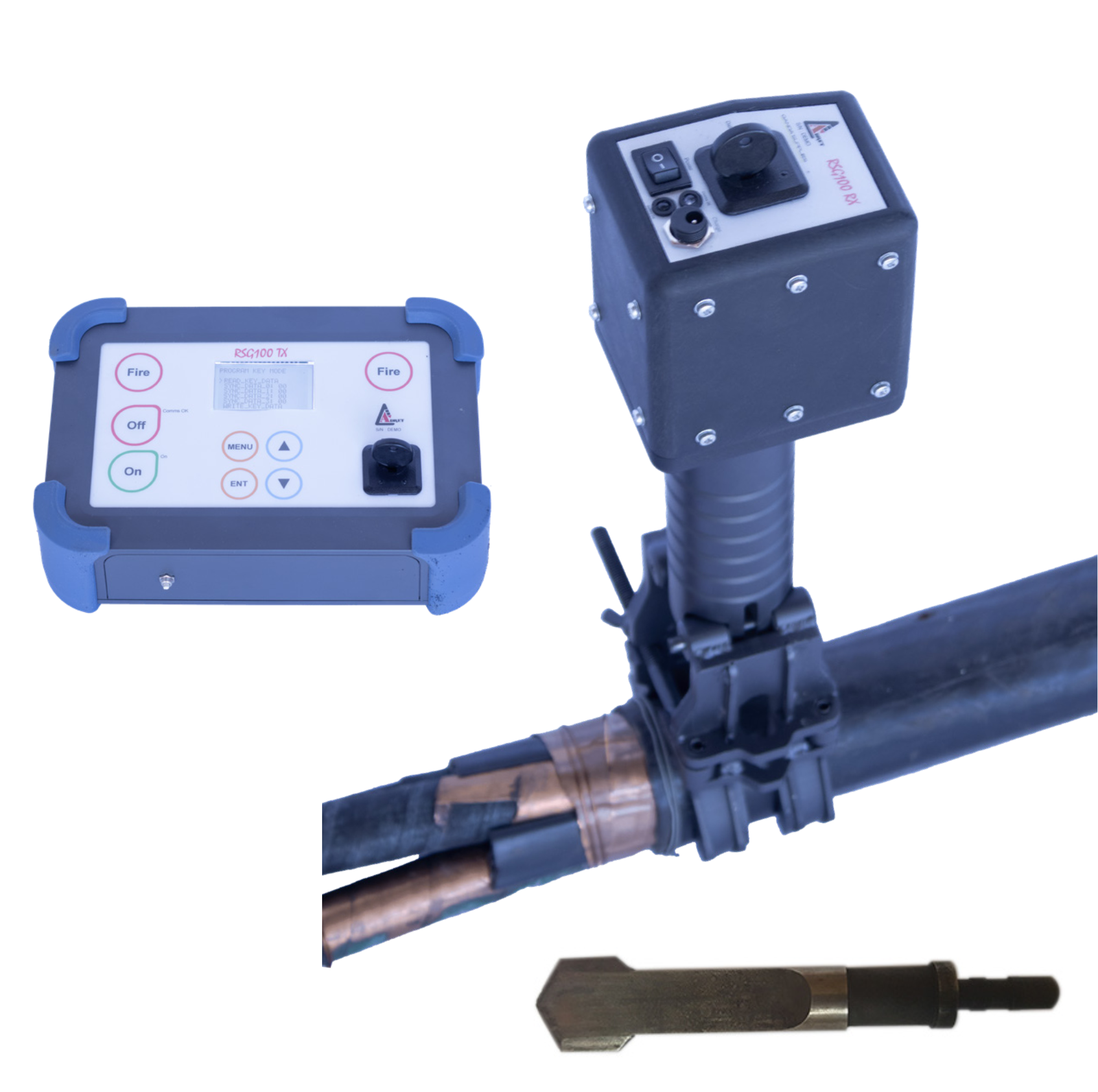

RSG100
CABLE SPIKING GUN
PRINCIPLES OF OPERATION
Cable spiking guns are used in conjunction with cable identification systems.
After positive identification it remains necessary to spike the cable to ensure that it is completely off line before work can continue.
The RSG100 uses a coded radio signal between the control unit and the gun.
This ensures absolute safety and that there is no personnel present during the spiking operation.
SPECIFICATION
Possible Cabe Size : 30mm-100mm
Safety Features : Bi-directional comms between transmitter and receiver ensures complete safety before fire signal is sent. Audible Fire Ready signal 50m remote control possible
Power Source : Transmitter 9V PP9 Battery, Receiver 9V PP9 Battery
Cartridges : Available as consumables from manufacturer
Dimensions : Control 100 x 60 x 160 mm 250g, Gun 400 x 200 x 200 mm 15kg
Enclosure : Transmitter Pelican Case, IP67 Rated Gun Stainless Steel
Carry Case : Ruggedized Aluminium Case
Test Environment : Temperature Indoor and outdoor: 10ºC to + 45ºC. Humidity: ≤ 85%
Accessories : Cartidges, Tools, Earth lead
