CI75

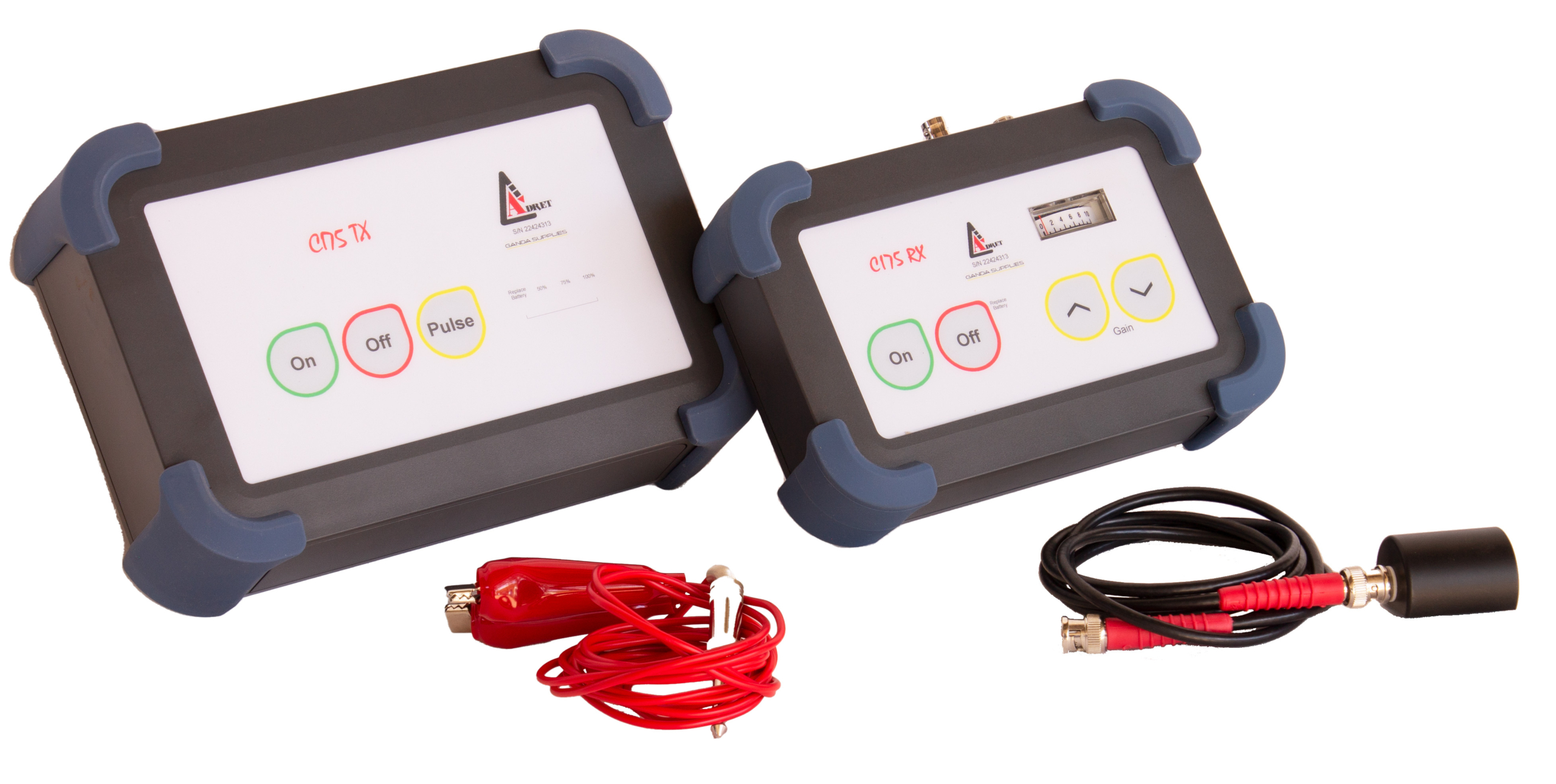

CABLE IDENTIFICATION SYSTEM
Power cable jointing technicians are often faced with the problem of having to cut into existing live cables in order to expand their existing networks. The CI75 was designed to facilitate the positive identification of one disconnected power cable from a bundle. It will, when used correctly positively and safely identify one specific cable. It is very simple to operate and will give perfect results time after time.
PRINCIPLES OF OPERATION
The unit uses a crystal controlled sine wave as a basis on both the transmitter and receiver of 625Hz. The signal is transmitted into the cable by directly connecting it to two of the cores on the cable to be identified. The far end of the cable should be disconnected and the same two cores short circuited.
The unit will also function when the far end of the cable is put into earth using the switchgear. The signal is then picked up by the antenna and its signal strength displayed through the analog meter on the panel.
The application of the instrument is very simple and very low levels of skills are needed for successful positive cable identification.
TRANSMITTER
Output Power : 5W Continuous/Pulsed
Power Supply : 6 X 1.5V C Cells (Alkaline)
Weight : 1Kg
Battery Indication : Red/Green LED
Battery Life : Approximately 40Hrs
Operating Freq : 625Hz
Range : 20km
Signal : Pulsed/continuous sine wave
Output Protection : Matching transformer isolated
Operating Temp : 0C to +50C
RECEIVER
Gain : 120dB Max
Filter : Switched Capacitor Type
Power Supply : 1 X 9V PP3 (Alkaline)
Weight : 500g
Battery Indication : Red/Green LED
Battery Life : Approximately 40Hrs
Antenna : High Gain Tuned System
Audion Indication : Loudspeaker
Visual Indication : Analogue Panel Meter
Operating Freq : 625Hz
Operating Temp : 0C to +50C
